Mobile Tactical Communications Simulator

Mobile TacSIM is a PC based portable tactical communications and radar simulation system that uses ruggedized, commercial off-the-shelf hardware configurations for enhanced reliability and durability. Mobile TacSIM functions much like an actual Tactical Data System (TDS) except that the Simulation Object Database from which messages are generated is initiated through manual operator actions, scenario events, and/or simulation data link input (e.g. DIS) rather then from sensor inputs. External interfaces configured into the TacSIM independently scan the Simulation Object Database and generate the appropriate primary and amplifying messages for each object. Message generation is based on the visibility of the object (e.g. radar coverage area), availability of data, and requirements of the associated specification (e.g. MIL-STD-6016E). Data received over a configured external interface is validated for errors and processed for automatic link responses (R 2 shifts, ID conflict processing, command processing, etc.), presentation of new data in hook readouts, real-time data reduction, and automatic alerts. Non-periodic message traffic such as Data Update Requests, ID Differences, etc. are generated in response to operator actions (and scenario events) as well as in response to received messages.

  • Data Links
  • Radars
  • I/O Protocols and Standards
  • Datasheet
  • Link 16
    (MIL-STD-6016, STANG 5516, JTIDS TIDIP)
  • Link 11, Link 11B
    (MIL-STD-6011, STANG 5511, JCS Pub6)
  • NATO Link1
    (STANG 5501)
  • ATDL-1
  • FAAD Data Link
  • NATO Link 14
  • TIBS
  • Variable Message Format
  • International Data Link
  • Unclassified Data Link
  • Missile Battery Data Link
  • Lateral Tell
  • Forward Tell
  • TESS
  • ICAO
  • Simulated Data Links:
  • DIS
  • TCL
  • Forwarding:
  • Link 16 Link 11/11B
  • CD2
  • AN/APG-71
  • AS/APS-138
  • AN/APY-2
  • AN/APX-76
  • AN/APX-100
  • AN/APX-103
  • AN/ARN-118
  • AN/ARN-118A
  • AN/ASN-130
  • AN/FPS-117 (LPR)
  • AN/MPQ-51 (ROR)
  • AN/MPQ-55(CWAR)
  • AN/MPQ-57
  • AN/TPS-32
  • AN/TPS-43E (DAR)
  • AN/TPS-70
  • AN/TPS-75
  • AN/TPS-46
  • AN/UPX-23
  • AN/UPX-27
  • IHAWK Phase III
    AN/MPQ-50 (PAR)
    AN/MPQ-61 (HIPIR)
    AN/MPQ-62 (CWAR)
    M192 Launcher
  • SPS-48C
  • SPS-96/125
  • RS-232
  • RS-422
  • RS-449
  • RS-485
  • EIA-530
  • EIA-530A
  • V.35
  • V.36
  • X.25
  • HDLC
  • TCP, UDP, Multicast

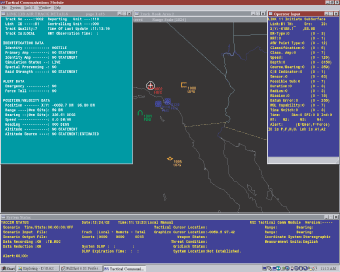

Pull-down and context specific pop-up menus facilitate definition of the simulation environment which comprises moving and stationary entities. Entity types include air, land, surface, and subsurface surveillance objects, unit platforms/radar sites, missiles (ballistic and non-ballistic) and EA/ES objects. Pre-defined world maps, user defined map areas, and digital terrain maps provide enhanced visualization. Extensive user - friendly controls allow operators to filter the tactical situation displays as well as both real-time and post-test data reduction providing optimal data visibility for observation and analysis. Mobile TacSIM's scenario generation facility allows users to automatically capture all operator actions as a scenario. Scenario files are plain ASCII text and are easily modified with any text editor. Users retain full interactive control of Mobile TacSIM during execution of a scenario and may perform any mix of scenario driven and manually initiated events providing real-time control of the simulation environment at all times.

Mobile TacSIM is configured as a man portable workstation supporting multiple radar and data link interfaces. The number of external interfaces supported by a single Mobiel Tac SIM is virtually unlimited. Since Mobile TacSIM has the same features as the full TacSIM system, it can be configured to participate in a TacSIM network simply by connecting it to the TacSIM LAN. In this configuration, Mobile TacSIM can take advantage of the distributed processing and operator controls of a full TacSIM network, while maintaining fully integrated situation awareness and data availabilty at each workstation.
